PICK YOUR CARD

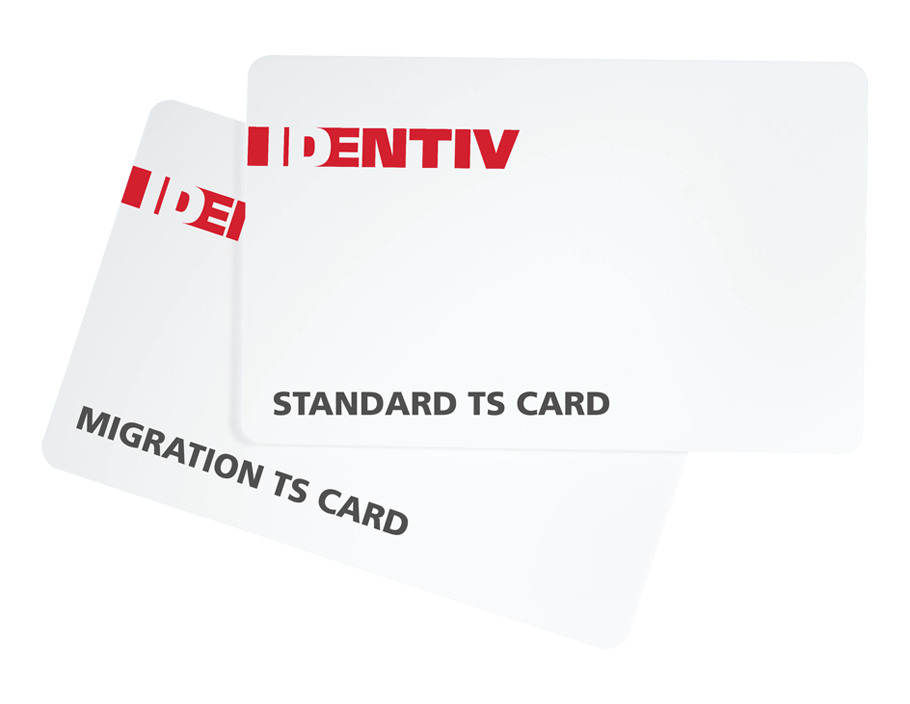

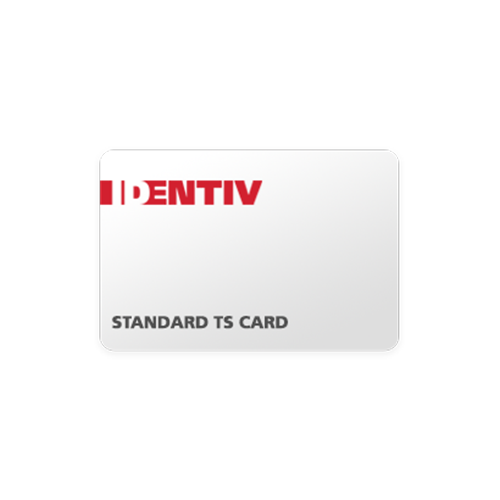

TS Standard 256B ISO Card (Composite)

P/N: 5020-SDXXX-YYY Single technology MIFARE DESFire EV1 HF (13.56 MHz) credentials, ideal for new installations, and compatible with uTrust TS Readers

TS Migration 256B Plus Prox ISO Card (Composite)

P/N: 5020-MDXXX-YYY Dual-frequency MIFARE DESFire EV1 HF (13.56 MHz) and LF (125 KHz) credential, ideal for existing LF installations, compatible with uTrust TS and LF readers, and programmable for simplified migration

Introducing the New Generation of Contactless Smart Cards.

  • 1) Proximity low-frequency (LF) cards are too easily copied by malicious clones or by card manufacturers, according to a secure card platform.
  • 2) Based on the open and widely used MIFARE DESFire platform, which has received Common Criteria certification and is regarded by IT organisations as providing the greatest level of security assurance, a standards-based card platform
  • 3) Support for Migration/Multi-Technology Available in two varieties: uTrust TS Migration Cards (which feature 125 kHz proximity technology and work seamlessly with existing 125 kHz proximity readers) and uTrust TS Standard Cards (for new installations).
Making Your Job Simpler, Quicker, and Cheaper
  • Compatibility
    System design, ordering, and deployment are made simple and quick thanks to compatibility with uTrust TS Readers, including ScramblePad.
  • Fast Delivery
    produced at our Santa Ana, California facility, and are typically delivered within 48 hours of receiving a valid order.
  • Competitive Pricing
    Cheaper than standard low-frequency proximity cards
Create Your Own
uTrust TS Cards come pre-programmed with a set of diversified keys that are securely controlled by Identiv and guard against unauthorised access (i.e., preventing card duplication and forging) if you need specific cryptographic keys to protect your assets. Additionally, the secrecy and integrity of interactions between cards and readers are safeguarded by these keys. You may be familiar with our VIP Programme. Identiv unlocks TS Cards so that YOU maintain control. You may create your own secret keys, securely share them with Identiv, and quickly order cards and readers. Contact sales to enrol and learn more.
Using Open Source Software to Improve Physical Security Standards
Identiv has published the Open Access Card Format (OACF), which outlines the data sent to the cards, together with the source code used to programme and customise their uTrust TS Card line. You may access the OACF standard on GitHub. Please feel free to contact oss@identiv.com with any inquiries. DESFire EV1 and DESFire EV2 cards can be programmed and interacted with using Identiv's programming library. The code may be readily updated to enable other instructions, and Identiv will accept pull requests, even if the business has only implemented a portion of the commands accessible on DESFire cards.
A Flexible Framework for Current Specifications
Looking for various closed-loop payment or access control applications? Various DESFire apps can be pre-programmed onto uTrust TS Cards. We've also integrated NXP's general access control data model specifications (also known as NXP PACS, Application Note AN10957), which are excellent for third-party alternatives. Our cards can include either the NXP PACS or the TS Card application alone, or both. If you're still having trouble locating what you're looking for, we can provision unique programmes, files, or keys by making use of the NXP MIFARE DESFire chip family's extensive array of multi-application capabilities.

Product Collateral

Download uTrust TS Cards Data Sheet
