uTrust 5501 F Series Multi-Technology Smart Card Reader/Writer Modules
MODULE VARIATIONS

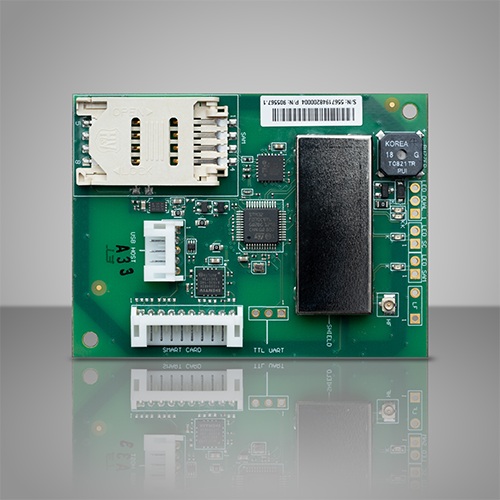

uTrust 5501 F EA
Reads ID-1 cards, contactless credentials, and NFC-enabled smart devices that support host card emulation

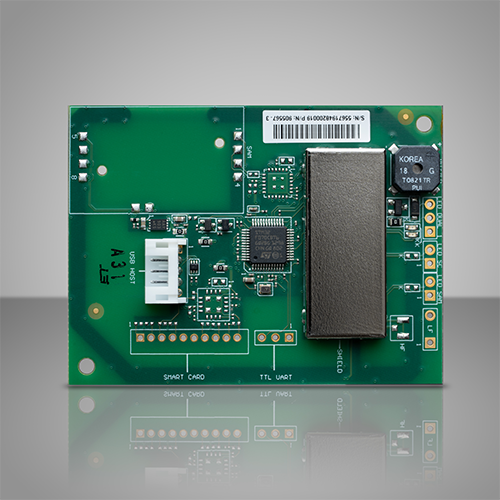

uTrust 5501 HF OBA
Handles tons of form factors, like ID1-sized cards, key fobs, any size token, NFC labels, and even NFC smartphones

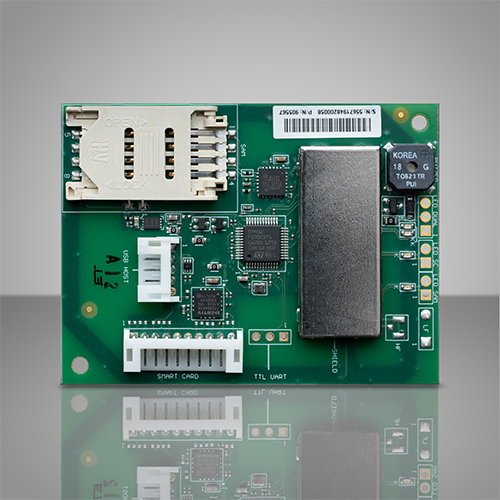

uTrust 5501 F OBA
Combines contactless and leading-edge NFC technologies and is protected by an optional secure access module (SAM)

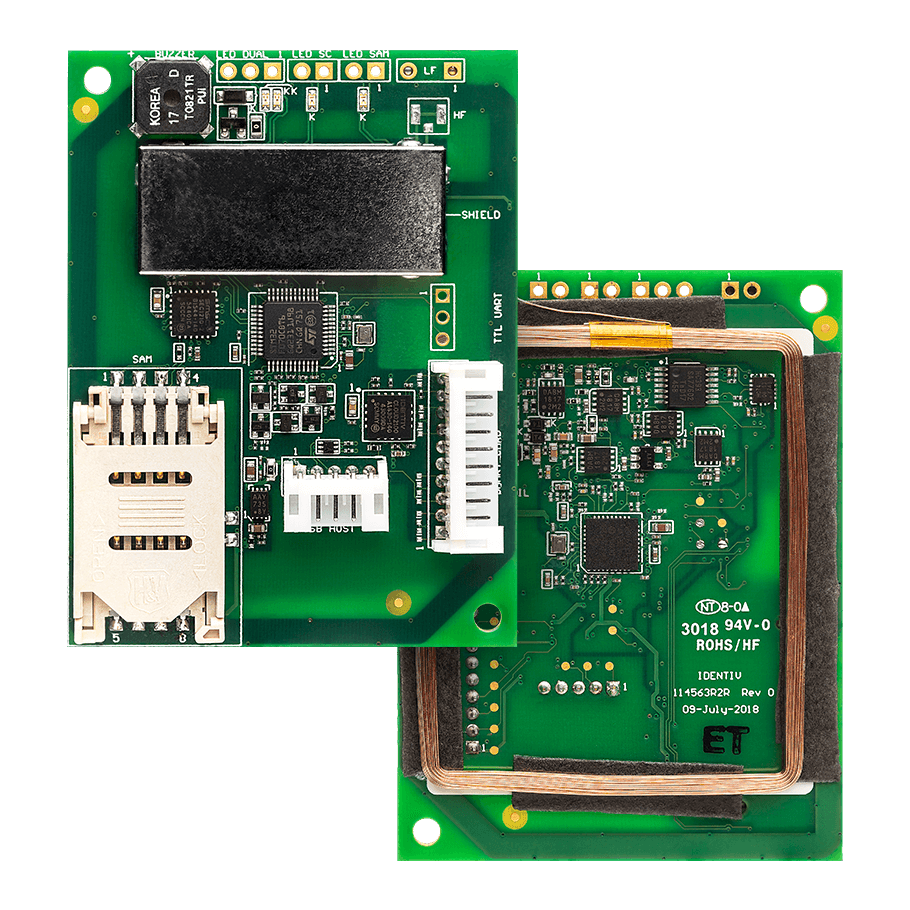

uTrust 5501 F Series Multi-Technology Smart Card Reader/Writer Modules
Multi-technology uTrust 5501 F modules combine 125 kHz and 13.56 MHz contact and multi-frequency/multi-ISO contactless interface capabilities into one secure smart card reader/writer module.
In-field upgradeable firmware makes uTrust 5501 F a secure, forward-looking investment, providing both flexibility and fast time-to-market for new products and applications, as well as minimum risk linked to the evolution of technology standards.

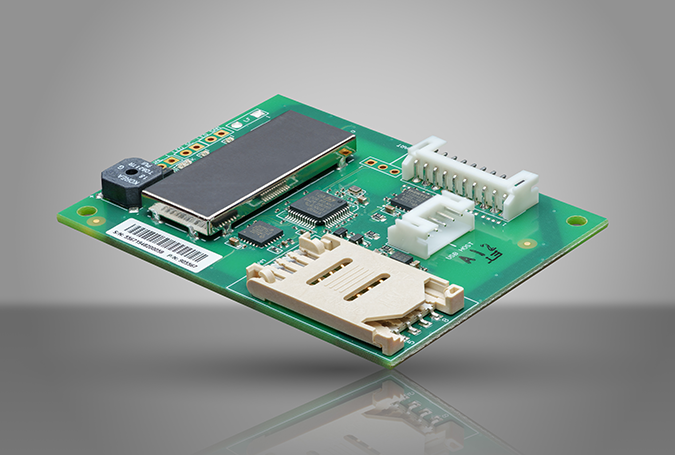

uTrust 5501 F OBA supports contact smart card personalization (synchronous and asynchronous), contactless high-frequency 13.56 MHz cards that are compatible with ISO14443, ISO15693, FeLiCa, and contactless low-frequency cards that operate at 125 kHz. The 125 KHz feature can be used for physical access control or to read and write to low-frequency cards.
- 1) Multi-Technology: Supports contact and contactless technology
- 2) Multi-Frequency: Supports 125 KHz and 13.56 MHz contactless cards
- 3) Multi-Protocol: ISO14443 A/B, ISO15693, NFC, MIFARE™, FeLiCa™, and iClass/iClass Seos™ through SAM
